Delete Duplicate Segments (DelDupSeg)

Type: Batch Application

Deletes all duplicate and overlapping segments.

Detailed Description

Searches for all 2 point lines and eliminates any overlap between them. Only lines with 2 points are considered. If a segment is an exact duplicate of another segment, one segment will be deleted. If a segment partially overlaps another segment, then one of the segment’s end points will be moved so they no longer overlap. This routine does not look for crossing segments; a portion of one segment must lie directly on top of a portion of another segment in order for them to be considered overlapping

NOTE: This batch application is undoable.

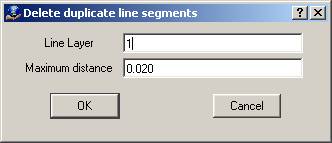

Parameters for Delete Duplicate Segments

Line Layer

Layer to search for duplicate line segments.

Maximum distance

Specifies the maximum distance that one segment can be from another and still be considered overlapping.
