Edit Line (EdiLin)

Type: Interactive Application



Interactively edits a line in a VrOne workspace.

Entity Elevations When Editing in 2D

When editing using a two dimensional device such as the system mouse, there are two parameters that control the assignment of the elevation during a move line, copy line, move line points, copy line point, and snap operation. Z Mode Move may be set to “hold” the original elevation or set the elevation to the “Active Z”. Z Mode Snap may be set to “hold” the original elevation, set the elevation to the “Active Z”, or “Snap” when snapping the current symbol entity to an existing entity.

When moving or inserting a line point, only that point elevation is changed. When moving or copying a line, all the line points are shifted in relation to the current line point.

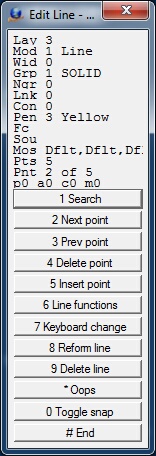

EditLine01

Edit Line Menu Keys dialog

Local Commands

Key-in

Description

Range

LAY=

Layer number

1-30001

MOD=

Mode

1-2 (1=line 2=spline line)

GRP=

Graphic pointer

1-60

WID=

Line width

0-255

PEN=

Pen number

1-256

CON=

Construction flag

0-1

NGR=

Non graphic pointer

32 bit

LNK=

Link number

32 bit

FC=

Feature code

15 char

Z=

Point elevation

Floating point value

F=

Point flag (Used by VrOne internal routines)

0-255

C=

Point code (Not used)

0-255

M=

Point mosaic width (Used by VrMosaic)

0-255

P=

Point pen code

0-4

0 = Continue,

1 = Up,

2 = Continue

4 = End

DIG=x y z

Digitizes point



ZMOMOV=

Z Mode when moving or copying a line or line point

0 = Hold original elevation

1 = Use Active Z

ZMOSNA=

Z Mode when snapping a line or line point

0 = Hold original elevation

1 = Use Active Z

2 = Use elevation of snapped entity

FKEY=name

Changes to function key parameters



SEACYC=

Sets search cycle mode

0 = Don't cycle through entities when searching

1 = Cycle through entities when searching

ZMODE=

Z mode in Keyboard Change

0 = Change point
1 = Change line

ZOPER=

Z operator in Keyboard Change

0 = Equals

1 = Add

2 = Subtract

3 = Multiply

4 = Divide

Parameters

Z Mode Move (ZMOMOV=)

When using a two dimensional input device such as the system mouse, this parameter controls the elevation of the line or line point when moving or copying a line or line point.  Option 0 is “hold”, which maintains the original elevation; option 1 is “Active Z”, which sets the elevation or the line or line point to the currently set Active Z.

Z Mode Snap (ZMOSNA=)

When using a two dimensional input device such as the system mouse, this parameter controls the elevation of the line or line point when moving or copying the line or line point then snapping it to an existing entity.  Option 0 is “hold”, which maintains the original elevation. Option 1 is “Active Z”, which sets the line or line point elevation to the currently set Active Z . Option 2 sets the elevation of the line or line point to that of the entity to which the line or line point was snapped.

Inherit Function Key Parameters (FKEY=)

Changes symbol parameters to the parameters in a function key.

Z Mode (ZMODE=)

This parameter is used in the Keyboard Change (button 7) option after a line has been identified. Determines which points on the current line will have their elevation modified.

0 - Change Point (ZMODE=0) - The Elevation is applied to the current point only.

1 - Change line (ZMODE=1) - The Elevation is applied to all the points on the current line.

Z Operator (ZOPER=)

This parameter is used in the Keyboard Change (button 7) option after a line has been identified. Determines how the Elevation will be applied to the line point(s).

0 - Equals (ZOPER=0) - The elevation(s) will be set to the Elevation specified

1 - Add (ZOPER=1) - The elevation will be added to the current line point elevation(s)

2 - Subtract (ZOPER=2) - The elevation will be subtracted from the current line point elevation(s)

3 - Multiply (ZOPER=3) - The current line elevation point(s) will be multiplied by the Elevation specified

4 - Divide (ZOPER=4) - The current line elevation point(s) will be divided by the Elevation specified. If this option is active then the Elevation specified cannot be zero.

Button Assignments

Edit Line - Lock On

Allows searching for a line to edit.



Button

Description

1

Identify line

Identifies a line to edit.

2

Reset search

Resets search cycling if turned on.

3





4





5





6





7

Enter params

Enter parameters.

8





9





*





0





#

End

Ends Edit Line.

Edit Line - Main

These buttons are active after a line has been locked on to.



Button

Description

1

Search

Saves the current line and returns to Lock on.

2

Next point

Moves to the next point on the line.

3

Prev point

Moves to the previous point.

4

Delete point

Deletes the current line point.

5

Insert point

Inserts a point after the current point.

6

Line functions

Starts menu with more line edit functions (Line Funcs).

7

Keyboard change

Allows changing line parameters using a dialog box.

8

Reform

Reforms line.

9

Delete line

Deletes the current line after verification.

*

Oops

Discards changes and returns to Lock on.

0

Toggle snap

Toggles snap on/off.

#

End

Ends Edit Line.

Edit Line - Ins Point

Places a point on line between the current point and the next point on line.



Button

Description

1

Dig new point

Digitizes a new XYZ point.

2

Point on line

Places a new point.

3





4





5





6





7





8





9





*

*



0

Toggle snap

Toggles snap on/off.

#

End

Ends Insert Point and returns to Main.

Edit Line – POL (Point on Line)

Places a point on line between the current point and the next point on line.  A VrOne Point on Line (Pol) application is available for placing a point on an existing line.



Button

Description

1

Dig new point

Places a point on line at offset from current location.

2





3





4





5





6





7





8





9





*





0

Toggle snap

Toggles snap on/off.

#

End

Ends Point on Line and returns to Main.

Edit Line - Line Funcs

More line editing functions



Button

Description

1

Move point

Moves the current line point.

2

Move line

Moves the line.

3

Rotate line

Rotates the line about the current point.

4

Copy line

Copies the line.

5

Mirror

Mirrors the line.

6

Delete arc flags

Deletes all arc flags on the line.

7

B spline

Fits a B-spline curve through the existing line points. Line is re-saved and Edit Line returns to Lock On.

8

Length Area Z

Displays the horizontal and slope distances, area, and mean elevation of the line.

9

Close line

Closes the line by placing a line segment from the first point to the last point.  Execution returns to Main.

*

*



0

Toggle snap

Toggles snap on/off.

#

End

Ends Line Functions and returns to Main.

Copy Line Notes:

When copying a line, the elevation of the current line point will be moved to the Active Z if the input Active Digitizer is XYZ (Stereo plotter). If the Active Digitizer is XY (Digitizing tablet) or mouse, the elevations are not changed.

Edit Line - Copy line

Mirrors the line about the current point.



Button

Description

1

Dig

Digitizes the location for the copied line.

2

New base point

Digitizes a new base point for ortho mode.

3

Duplicate

Duplicates the identified line.

4

Rev duplicate

Reverses the point order and duplicates the identified line.

5

Copy to Ws

Copies the identified line to another open Workspace.

6





7





8





9





*





0





#



Ends Copy Line and returns to Line Functions.

Copy Line Notes:

When a line is duplicated or copied, the position of the points on the line are taken from the originally identified line and not the edited points, if any. The copied line is positioned on top of the identified line.Attributes such as Layer and Graphic Pointer will be copied with the line.

Edit Line - Rotate

Rotates the line about the current point.



Button

Description

1

Accept

Accepts the current line rotation and returns to Main.

2

Rotate plus

Rotates clockwise by current rotation increment.

3

Rotate minus

Rotates counterclockwise by current rotation increment.

4

Rotate 45 deg

Rotates clockwise by 45 degrees.

5

Rotate 90 deg

Rotates clockwise by 90 degrees.

6





7

Enter rot incr

Allows entry of rotation increment.

8

Enter rotation

Allows entry and rotation of line by user-defined value.

9





*





0





#





Edit Line - Mirror

Mirrors the line about the current point.



Button

Description

1

Mirror X

Mirrors the line about the X axis.

2

Mirror Y

Mirrors the line about the Y axis.

3





4





5





6





7





8





9





*





0





#



Ends Mirror and returns to Line Functions

Edit Line - Reform

Moves a group of points by dragging the current point.  Points to be moved are defined by a negative and positive side pivot point.  The basic shape of the lines between the pivot points and the current point are maintained while the current point is being moved.



Button

Description

1

Reform Line

Reforms the line based on the current point and the pivot points.

2

Add points

Moves both pivot points away from the current point.

3

Remove points

Moves both pivot points towards the current point.

4

Toggle 2D/3D

2D – Reform is done in the XY plane only.

3D – Elevations are interpolated based on the distance moved.

5

Add point -

Moves negative side pivot point away from current point.

6

Remove point -

Moves negative side pivot point towards current point.

7

Edit defaults

Allows setting parameters such as reform radius.

8

Add point +

Moves positive side pivot point away from current point.

9

Remove point +

Moves positive side pivot point towards current point.

*





0





#

Abandon

Abandons Reform Line and returns to Main.
