Line Close (LinClo)
Type: Batch Application
Closes or checks for closure of lines in user-defined layers.
Detailed Description
Searches lines in user-defined layers and checks for line closure. Lines that are not closed may be closed by one of the following methods:
| • | Move the endpoint onto start point; |
| • | Mean the end points; |
| • | Add line segment between the endpoint and the start point; |
| • | Intersect the end segments; |
| • | Report unclosed polygons in drive file only (do not modify line). |
A drive file is always created for unclosed lines even if this application closes them. Line Cross is undoable.
Available Key-ins
Key-in |
Description |
Range |
PARFIL= |
Load parameter file |
Line Close parameter file name (.lcl) |
RUN |
Run Line Close |
|

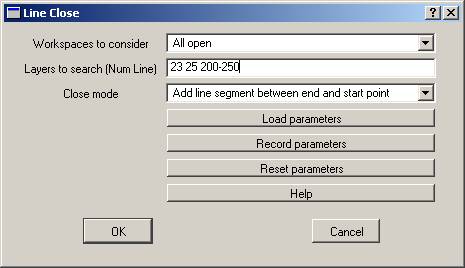

Parameters for Line Close
Workspaces to consider
Defines the workspaces to consider when running Line Close.
Layers to search
Defines the layers to search for unclosed lines. Layers that are turned off will not be considered even if they are specified as a search layer.
Close mode
Defines the action to take on the found unclosed lines. One of the following may be done on unclosed lines:
| • | Move the endpoint onto start point; |
| • | Mean the end points; |
| • | Add line segment between the endpoint and the start point; |
| • | Intersect the end segments; |
| • | Report unclosed polygons in drive file only (do not modify line). |
