Edit Symbol (EdiSym)

Type: Interactive Application

Interactively edits a symbol in a VrOne workspace.

Detailed Description

Allows interactive, graphical editing of an existing symbol in a VrOne workspace. Symbols may be changed, moved, copied, re-sized and rotated.

Entity Elevations When Editing in 2D

When editing using a two dimensional device such as the system mouse, there are two parameters that control the assignment of the elevation during a move, copy, and snap operation. Z Mode Move may be set to either “hold” the original elevation or to set the elevation to the “Active Z”. Z Mode Snap may be set to “hold” the original elevation, set the elevation to the “Active Z”, or “Snap” when snapping the current symbol entity to an existing entity.

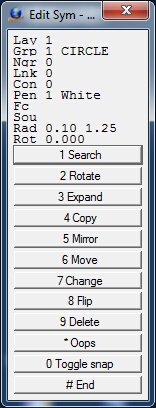

EditSymbol01

Edit Symbol Menu Keys dialog

Local Commands

Key-in	Description	Range
LAY=	Layer number	1-30001
MOD=	Mode	1-2
GRP=	Graphic pointer	1-60
WID=	Line width	0-255
PEN=	Pen number	1-256
CON=	Construction flag	0-1
NGR=	Non graphic pointer	32 bit
LNK=	Link number	32 bit
FC=	Feature code	15 char
DIG=x y z	Digitizes point
ZMOMOV=	Z Mode when moving or copying a symbol	0 = Hold original elevation 1 = Use Active Z
ZMOSNA=	Z Mode when snapping a symbol	0 = Hold original elevation 1 = Use Active Z 2 = Use elevation of snapped entity
FKEY=name	Changes to function key parameters
SEACYC=	Sets search cycle mode	0 = Don't cycle through entities when searching 1 = Cycle through entities when searching

Parameters

Z Mode Move (ZMOMOV=)

When using a two dimensional input device such as the system mouse, this parameter controls the elevation of the symbol entity when moving or copying the entity. Option 0 is “hold”, which maintains the original elevation. Option 1 is “Active Z”, which sets the entity elevation to the current Active Z.

Z Mode Snap (ZMOSNA=)

When using a two dimensional input device such as the system mouse, this parameter controls the elevation of the symbol entity when moving or copying the symbol then snapping it to an existing entity. Option 0 is “hold”, which maintains the original elevation. Option 1 is “Active Z”, which sets the entity elevation to the current Active Z. Option 2 sets the elevation to that of the entity to which the symbol was snapped.

Inherit Function Key Parameters (FKEY=)

Changes symbol parameters to the parameters in a function key.

Button Assignments

Edit Symbol - Lock On

	Button	Description
1	Id symbol	Identifies symbol to edit.
2	Reset search	Resets search cycling if turned on .
3
4
5
6
7	Enter params	Enter parameters.
8
9
*
0
#	End	Ends application.

Edit Symbol - Main

	Button	Description
1	Search	Saves the current symbol and returns to Lock on.
2	Rotates	Rotates symbol.
3	Expand	Expands/shrinks symbol.
4	Copy	Copies symbol.
5
6	Move	Moves symbol.
7	Change	Allows changing symbol parameters using a dialog box.
8	Flip	Flips symbol.
9	Delete	Deletes current symbol after verification.
*	Oops	Discards changes and returns to Lock on.
0	Toggle snap	Toggles snap on/off.
#	End	Ends application.

Edit Symbol – Rotate

	Button	Description
1	Accept rot	Accepts current rotation and returns to Main.
2	Rotate -	Rotates symbol one degree counterclockwise.
3	Rotate +	Rotates symbol one degree clockwise.
4
5	Rotate – fine	Rotates symbol .25 degrees counterclockwise.
6	Rotate + fine	Rotates symbol .25 degrees clockwise.
7	Zero rotation	Sets symbol rotation to zero.
8	Rotate 45 deg	Rotates symbol 45 degrees clockwise.
9	Rotate 90 deg	Rotates symbol 90 degrees clockwise.
*
0
#

Edit Symbol - Expand

	Button	Description
1	Accept	Accepts current size and returns to Main.
2	Shrink	Shrinks symbol radius by 1%.
3	Expand	Expands symbol radius by 1%.
4
5
6
7
8
9
*
0
#
