Import Drive File (ImpDri)

Type: Translator

Imports an ASCII XYZ file to a VrOne drive file.

Detailed Description

VrOne drive files (.drv) are stored in a binary format.  Import Drive File translates an XYZ formatted ASCII file to a VrOne drive file.  After translation, this file may be accessed by the VrOne drive routines as a user-defined drive file.  The following is an example of an ASCII drive file.

  634251.010689   1761639.884518       27.000000

  634907.271607   1760401.788854       28.000000

  634916.029990   1760389.327126       28.000000

  634947.153448   1760403.256970       28.000000

  635017.584574   1760455.106385       28.000000

  635028.486218   1760446.562766       28.000000

  634413.773877   1761956.830080       28.000000

  635070.112476   1762245.693583       28.000000

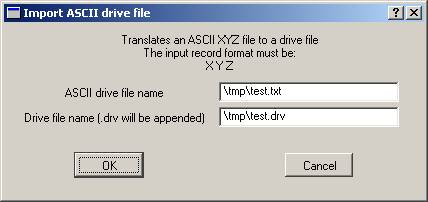

Parameters

ASCII drive file name

Defines the XYZ formatted ASCII drive file to import.

Drive file name

Defines the VrOne drive file to create.  NOTE:  If this file already exists, it will be overwritten.
