Move Lines To Symbols (LinSym)

Type: Batch application

Detailed Description

The Move Lines To Symbols batch application moves the vertices of user defined lines to the origin point of user specified symbols.  Lines are identified by layer and symbols are identified by layer and (or) graphic pointer.  Line points may inherit the elevation of the symbols they are moved to or may keep their original line point elevation.



Layers that are turned off will not be considered even if they are specified.



LinesToSymbols01   LinesToSymbols02

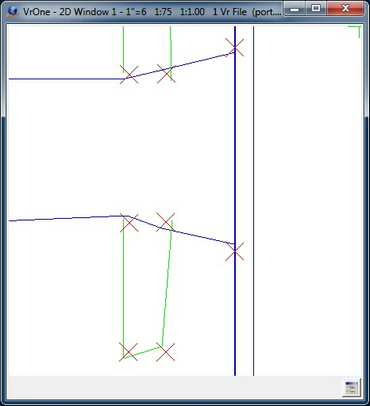

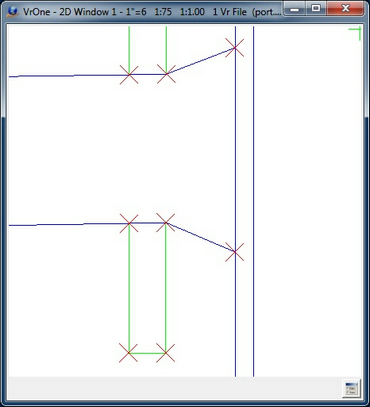

Move Lines to Symbols before and after

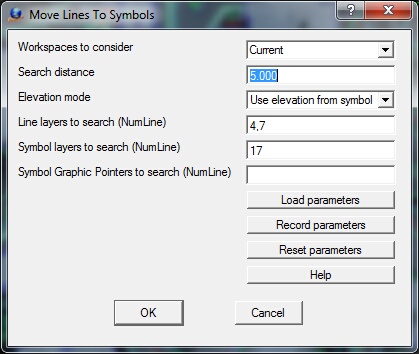

Move Lines To Symbols Parameters

LinesToSymbols03

Parameters

Workspaces to consider

Defines the workspaces to consider when running Move Lines To Symbols.  Options are Current and All open

Search distance (ground)

Defines the distance from the line points to search for symbols to move to.  The search distance is entered as ground units

Elevation move

When moving line points to symbols the points may retain their original line point values (Use elevation from line) or may inherit the elevation of the symbol being moved to (Use elevation from symbol)

Line layers to search (NumLine)

The layers that contain the lines to move to symbols is defined by this parameter.  Layers that are turned off will not be considered even if they are specified.  A Number Line is used to define these layers.

Symbol layers to search (NumLine)

The layers that contain the symbols to move line points to is defined by this parameter.  Layers that are turned off will not be considered even if they are specified.  A Number Line is used to define these layers.

Symbol Graphic Pointers to search (NumLine)

The search for symbols to move lines to can be further refined by defining the symbol graphic pointers to search for.  If this field is left blank then all symbol Graphic Pointers will be considered.  A Number Line is used to define this parameter.

Available Key-ins

Previously defined parameter files may be loaded and Move Lines to Symbols may be run from key-ins.  This allows this application to be run from a Macro.



Key-in

Description

Range

PARFIL=

Load parameter file

Line Close parameter file name (.lpo)

RUN

Run Line Point Inside
