Polygon Elevation (PolEle)

Type: Batch application



Changes elevation of symbols and (or) VrPoints (LiDAR) inside a polygon or group of polygons.  This operation may be performed on the points or symbols in a single polygon by identifying the baseline polygon or a group baseline polygons in an interactive batch mode.

Detailed Description

This interactive batch application can be used to change the elevations of all symbols and (or) VrPoints (LiDAR) that fall within a baseline polygon to a single elevation. A baseline polygon is selected, and all points that fall within the polygon and meet the search criteria are changed to the new elevation.



This application can be applied to multiple workspaces, multiple layers, and multiple symbol graphics pointers.



Layers that are turned off will not be considered.

Available Key-ins

Key-in

Description

Range

WsTc=

Workspaces to consider

0 - Current

1 - All

ProSym=

Process symbols

0 - No

1 - Yes

ProPoi=

Process points

0 - No

1 - Yes

EleMod

Elevation mode

0 - Use New Elevation

1 - Use mean elevation from base line

2 - Use lowest elevation from base line

3 - Use highest elevation from base line

NewEle

New elevation to use if Elevation Mode is set to 0.

Real number

SeaGp

Graphic pointer to search when searching for symbols.

Number line

SeaBas=

Layers of base lines when processing in batch mode

Number line

Button Assignments

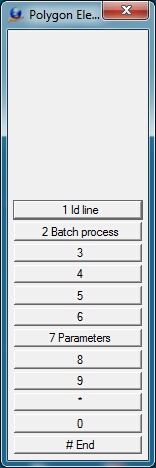

The following menu keys dialog is displayed at startup.

PolygonElevation_image002

Polygon Elevation – Main



Button

Description

1

Id Line

Allows selection of polygon. Displays confirm menu keys dialog.

2

Batch Process

Runs Polygon Elevation in batch mode.

3





4





5





6





7

Enter params

Enter parameters from dialog box.

8





9





*





0





#

End

Ends application.

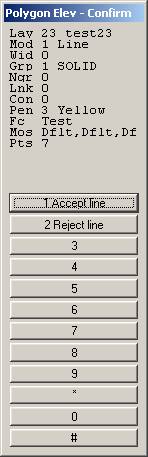

The following menu keys dialog is displayed after a polygon is selected.



PolygonElevation_image004

Polygon Elev – Confirm



Button

Description

1

Accept

Accepts line and starts the elevation change process.

2

Reject

Rejects the line and displays the main menu keys dialog.

3





4





5





6





7





8





9





*





0





#

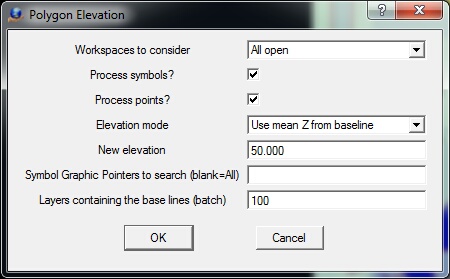

Parameters for Polygon Elevation

PolygonElevation_image006

Workspaces to consider

Defines the workspaces to consider. Options are Current only or All open workspaces.

Process symbols?

Specifies whether symbols should be processed.

Process points

Specifies whether points should be processed.

Elevation mode

Specifies the mode to determine the elevation to which to set the symbols and/or points which fall within the baseline polygon or polygons.  Options are:

Use New Elevation - Uses the elevation defined in the New Elevation field.
Use mean Z from baseline - Uses the mean of  the elevations from the points which define the baseline polygon.
Use low Z from baseline - Uses the lowest elevation from the points which define the baseline polygon.
Use high Z from baseline - Uses the highest elevation from the points which define the baseline polygon.

Symbol Graphic Pointers to search

Specifies the graphic pointers to consider when searching for symbols. This parameter may be entered as a number line.

Layers containing the base lines (batch)

Defines the layers in which to search form baseline polygons.  This parameter is used only when running Polygon Elevation in batch mode.  This parameter is entered as a number line.
