Sheet Grid (SheGri)

Type: Interactive Application



Grids and labels a user-defined polygon.

Local Commands

None

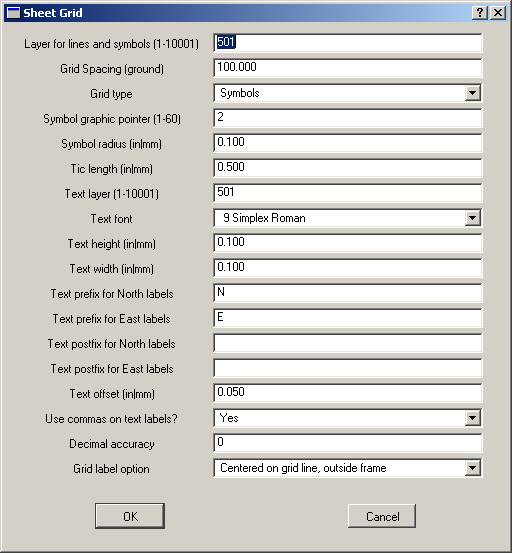

Parameters

SheetGrid_image002

Layer for lines and symbols

Specifies layer into which to place grid lines or grid intersection symbols. Range: 1-10001

Grid spacing

Defines in ground units the distance between grid line or grid intersections.

Grid type

Specifies whether to use grid lines or grid symbols.

Symbol radius

Sets in inches or millimeters the radius of the grid intersection symbols if the grid type is set to symbols.

Tic length

Sets in inches or millimeters the tic length if the grid type is set to symbols and edge ticks are selected.

Text layer

Specifies layer into which to place grid value text labels. Range: 1-10001

Text font

Specifies text font to use for grid value text labels. Range: 1-12

Text height

Defines in inches or millimeters the height for grid value text labels.

Text width

Defines in inches or millimeters the width for grid value text labels.

Text prefix for North labels

Defines prefix to place before each North grid value text label. Range: 10 characters

Text prefix for East labels

Defines prefix to place before each East grid value text label. Range: 10 characters

Text postfix for North labels

Defines postfix to append to each North grid value text label. Range: 10 characters

Text postfix for East labels

Defines postfix to append to each East grid value text label. Range: 10 characters

Text offset

Defines in inches or millimeters the distance to place grid value text labels from the grid frame.

Use commas on text labels?

Specifies whether commas will be placed on the North and East grid values.

Decimal accuracy

Defines the number of digits to the right of the decimal point to display for the North and East grid values.

Grid label option

Options for the placement of the grid value text labels:

On top of grid, inside frame;
On bottom of grid, inside frame;
Centered on grid, outside frame;
Rotated along frame, outside frame.

Button Assignments

Sheet Grid - Main



Button

Description

1

Id line

Identifies the line to grid.

2





3





4





5





6





7

Text params

Enter parameters from a dialog box.

8





9





*





0





#

End

Ends application.
