Slope Line (SloLin)

Type: Interactive Application / Interactive Batch Application



Interpolates (slopes) point elevations on a line based on two existing line points. There are three modes that are available:



1.The line to slope is identified and the two existing line elevations are identified.
2.The line to slope is identified and that line's end points are used as the existing points
3.All lines in layer(s) specified are sloped and the line end points are used as the existing points.

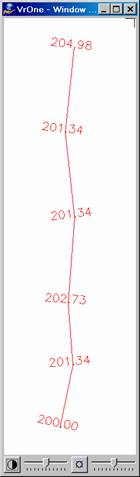

The following examples show the results of Slope Line. The example on the left shows a line before sloping and the example on the right shows the same line after sloping from the first to the last point on the line.



SlopeLine_image002   SlopeLine_image004

Local Commands

Key-in

Description

Range

MOD=

Existing points mode

0 = Identify

1 = Use line end points

SEALAY=

Layers to search for lines to slope

Number line

WSTC=

Workspaces to consider

0=Current 1=All

Button Assignments

Slope Line – Lock on

Button

Description

1 Id line

Identifies a line to slope.

2 Slope layer

Starts batch mode to slope lines in layer(s) specified (see below).

3



4



5



6



7 Params

Allows entry/edit of parameters.

8



9



*



0



# End

Ends Slope Line.



Slope Line – Pt1/2

If the Slope Mode is set such that the user identifies the start and end point, the following menu will be displayed.

Button

Description

1 Dig point 1/2

Digitizes the start or end points

2 Abandon

Abandons and returns to the previous menu

3



4



5



6



7



8



9



*



0 Toggle Snap

Turns snap on/off

# End

Ends Slope Lines

Slope Line – Confirm

Button

Description

1 Accept

Accepts the current slope results and re-saves the line.

2 Reject

Rejects the current line.

3



4



5



6



7



8



9



*



0



# End

Ends Slope Lines.

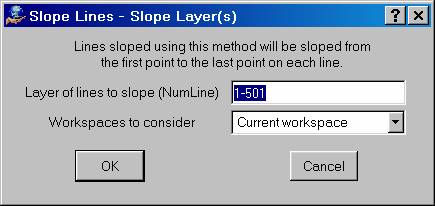

Slope Line – Slope Layer(s)

SlopeLine_image006



Slope Line may be run in a batch mode, in which it will slope the lines in the layers that are specified. The first and last points on the lines will be used as the base points. Multiple layers may be specified using a number line and the current or all open workspaces may be searched.
