AeroSys Settings

Description

The following are the general purpose settings for AeroSys. These settings may need modification for some situations.



For downloading and installation help, see “AeroSys Download and Install”.

Windows 7 Settings

1. Move to the \AeroSys\asw30\bin folder.

2. Right click  AeroSysX.exe. Select "Properties" from the menu then click the "Compatibility" tab.

3. Set Compatibility mode to "Windows XP (Service Pack 3) as shown below.

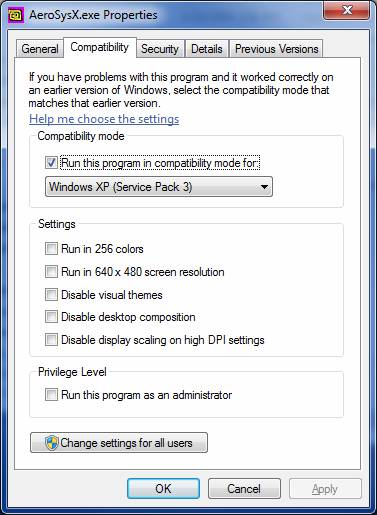

AeroSysSettings_image052

The AeroSysX Properties dialog box



In order for Aerosys Version 7.2 to run inside VrAirTrig in Windows 7, the Windows security level must be reduced.  "User Account Control Settings" can be accessed from Start -> Control Panel -> System and Security -> Change User Account Control settings.  Change the notify setting to "Never notify as shown below".  Reboot the computer for the change to take effect.

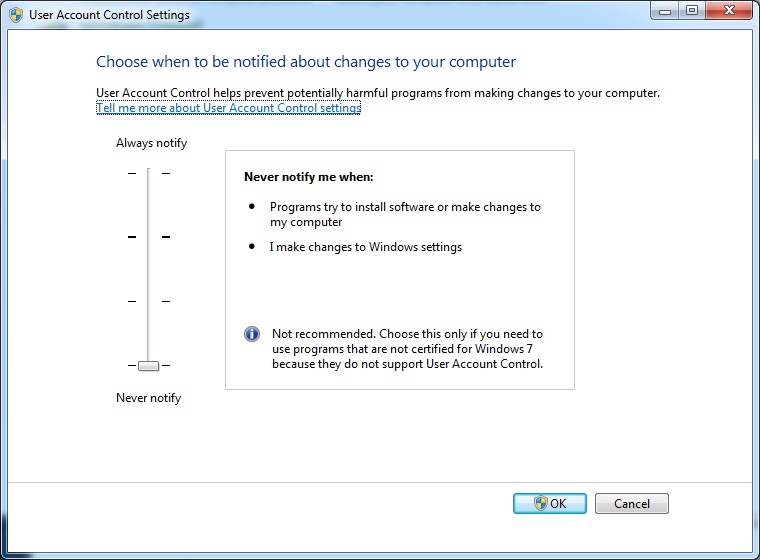

AeroSysSettings_image055

The User Account Control Settings and the lowest setting.

AeroSys Settings

Move to the \AeroSys\asw30\bin folder and run AeroSysX.exe. The following dialog box should appear.



AeroSysSettings_image003



Click the dialog box one time. Press the following key sequences to display the different confirmation menus. These menus may also be accessed by pressing the right mouse button and navigating through the menus to select the desired item. To exit the AeroSysX program press [Ctrl] X.



[Ctrl] [Alt] A - Auto-Sequence Configuration

[Ctrl] [Alt] R - Maximum Residual Limits

[Ctrl] [Alt] S - Default Standard Deviations

[Ctrl] [Alt] P - Pass Point ID & Position Parameters

[Ctrl] [Alt] T - Set Tie Point Thresholds

[Ctrl] [Alt] O - AeroSys Bundle Adjustment Configurations Options AeroSys-AT v7.2

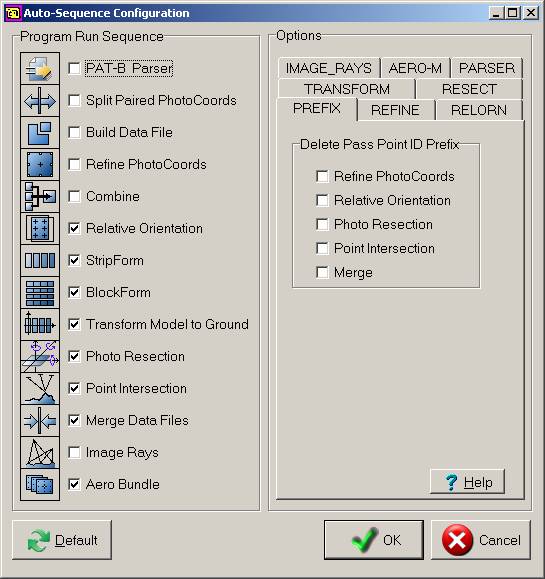

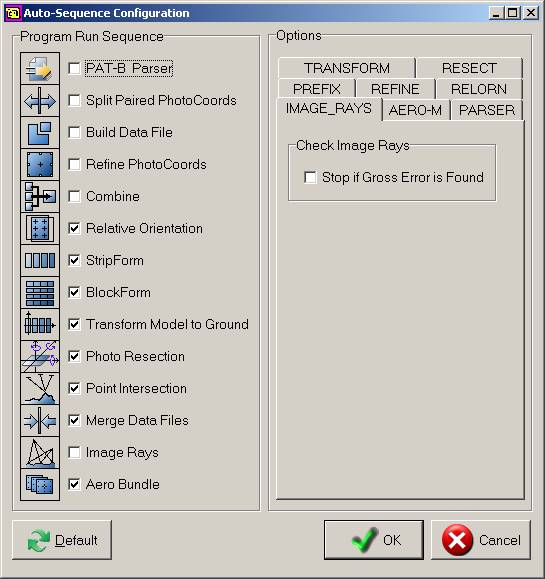

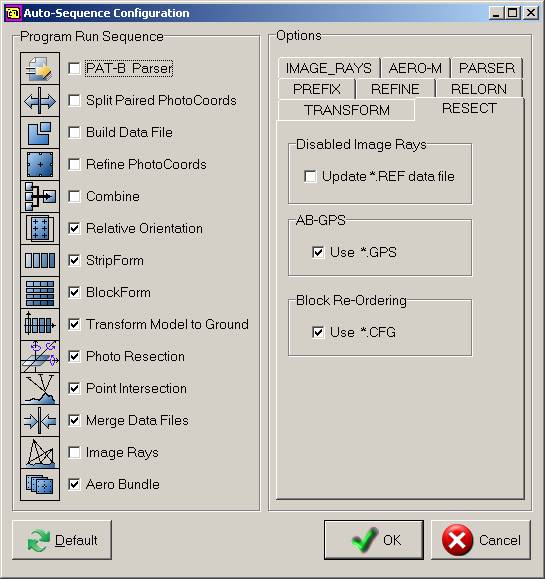

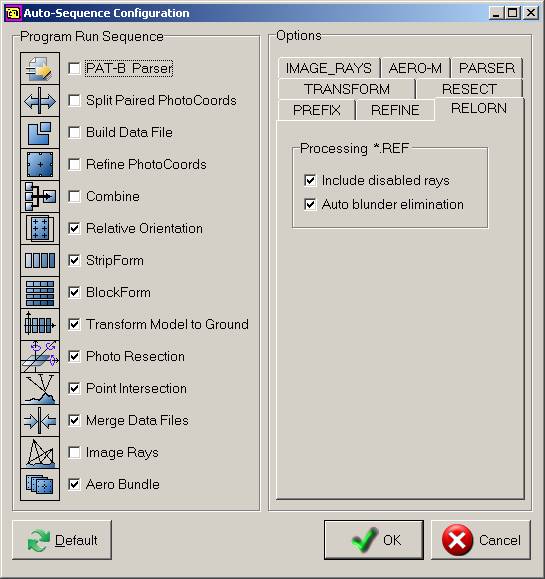

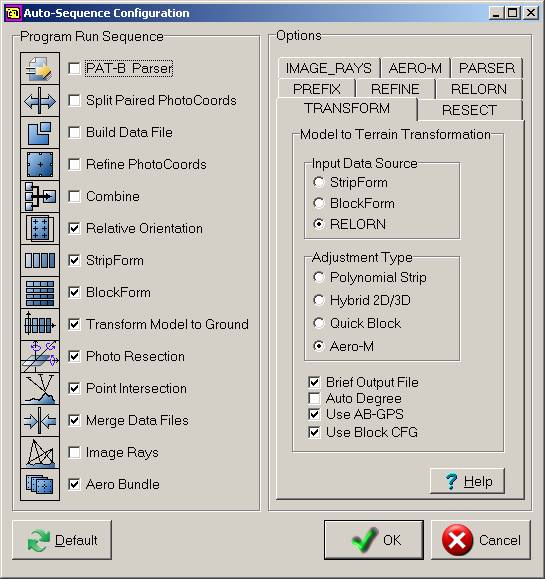

[Ctrl] [Alt] A - Auto-Sequence Configuration



AeroSysSettings_image005



AeroSysSettings_image007



AeroSysSettings_image009

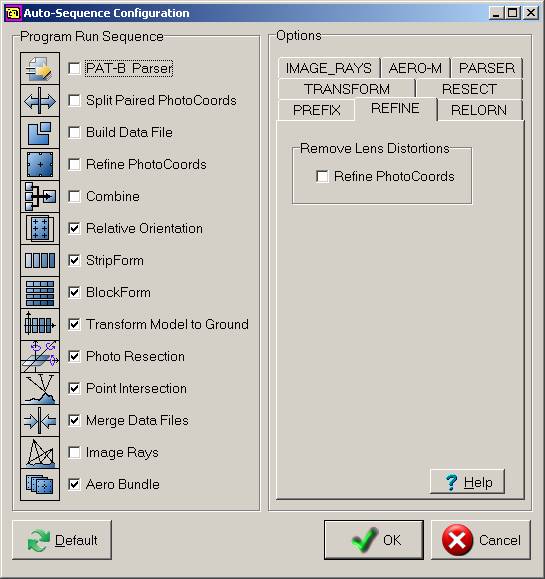

AeroSysSettings_image011



AeroSysSettings_image013



AeroSysSettings_image015



AeroSysSettings_image017

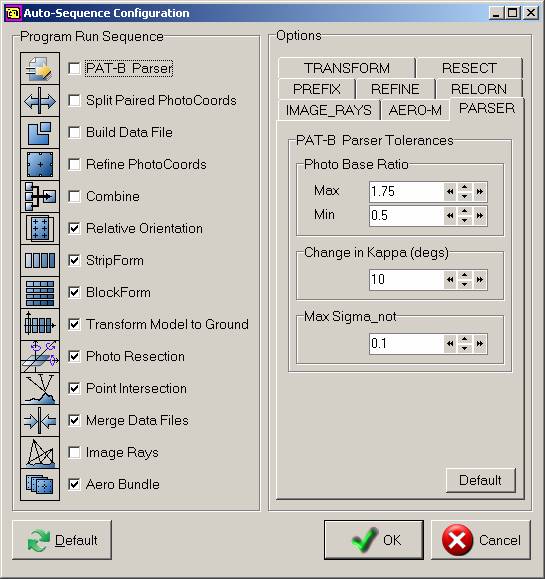

AeroSysSettings_image019

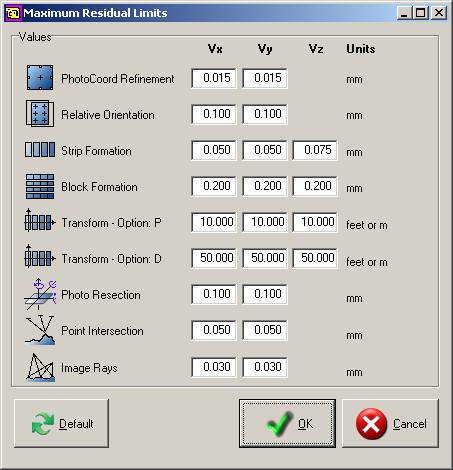

[Ctrl] [Alt] R - Maximum Residual Limits



AeroSysSettings_image021

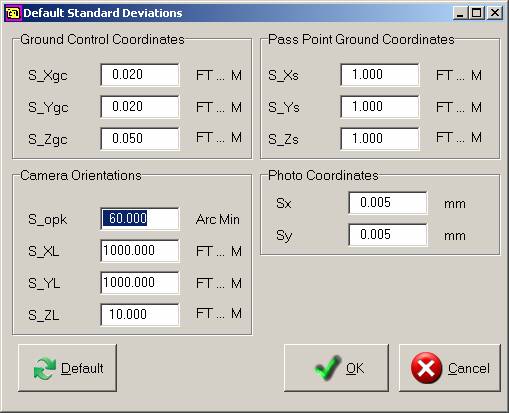

[Ctrl] [Alt] S - Default Standard Deviations



AeroSysSettings_image023

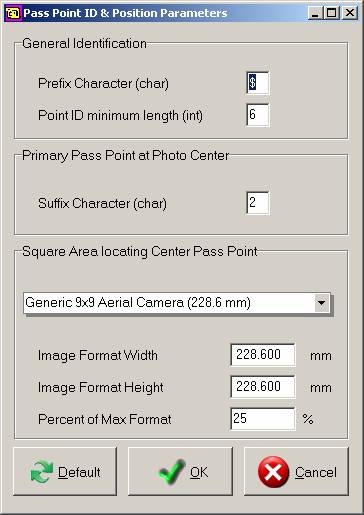

[Ctrl] [Alt] P - Pass Point ID & Position Parameters



AeroSysSettings_image025

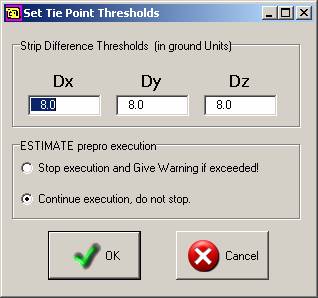

[Ctrl] [Alt] T - Set Tie Point Thresholds



AeroSysSettings_image027

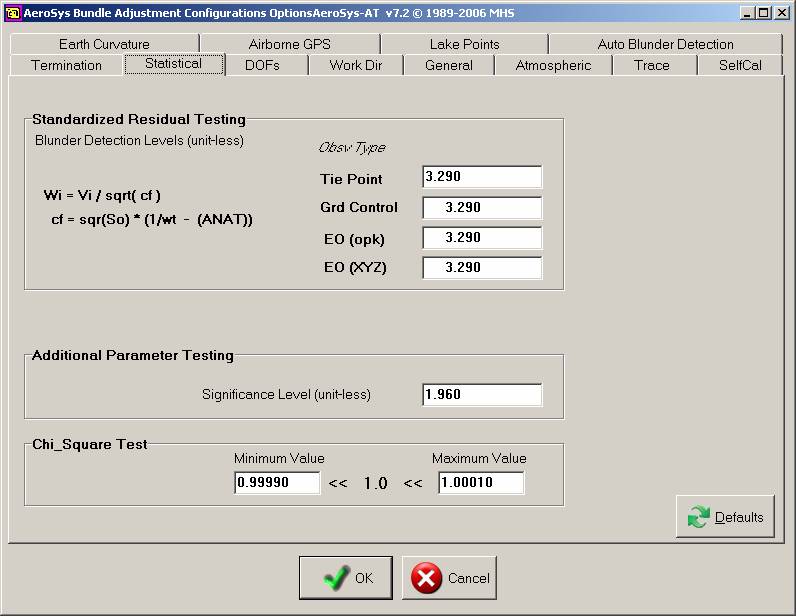

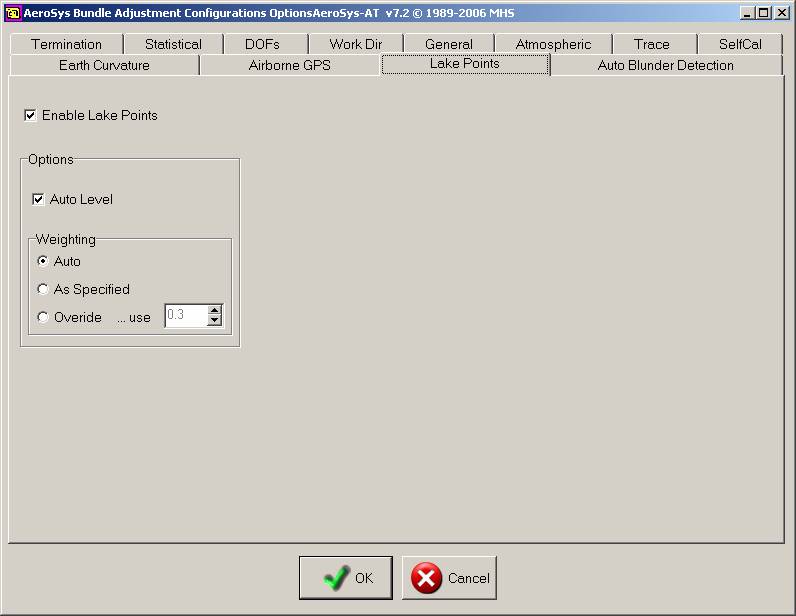

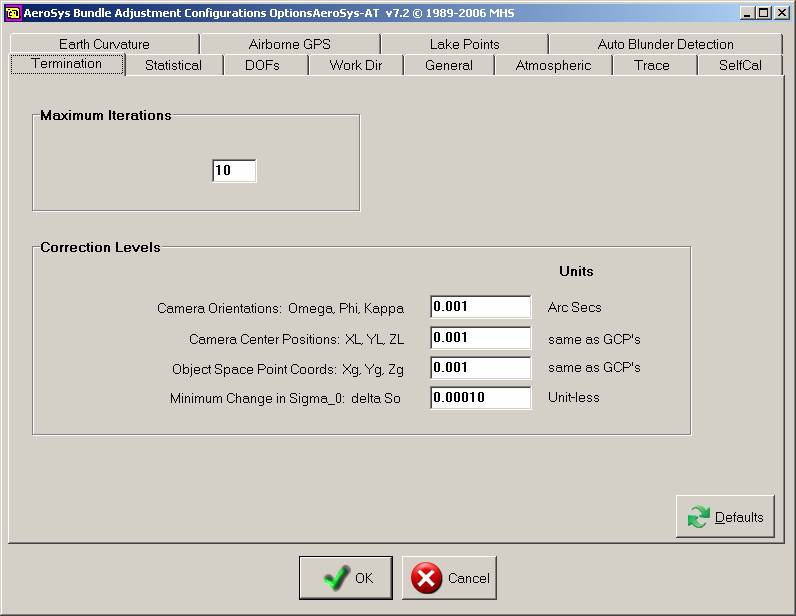

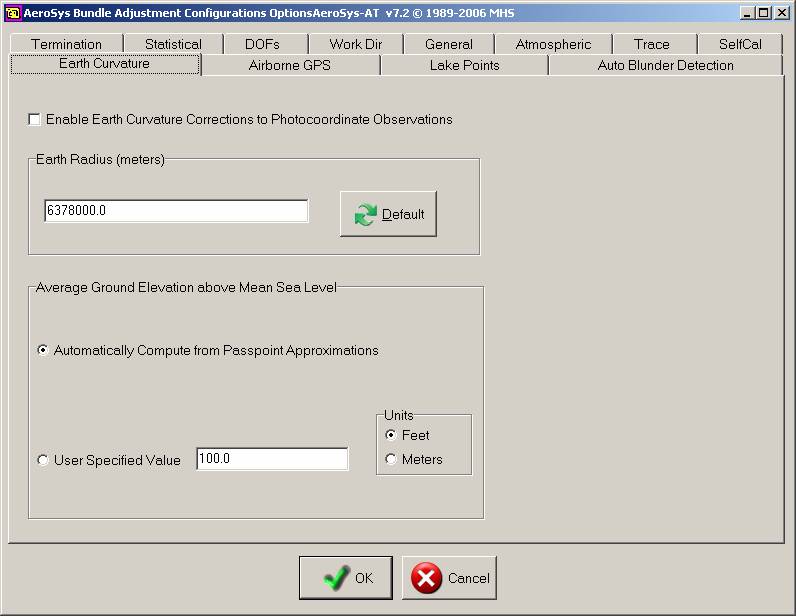

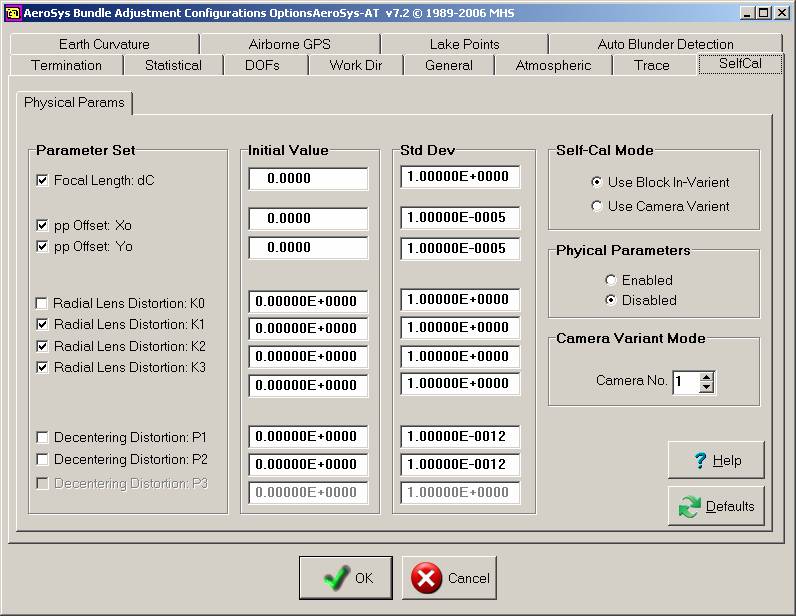

[Ctrl] [Alt] O - AeroSys Bundle Adjustment Configurations OptionsAeroSys-AT v7.2



AeroSysSettings_image029

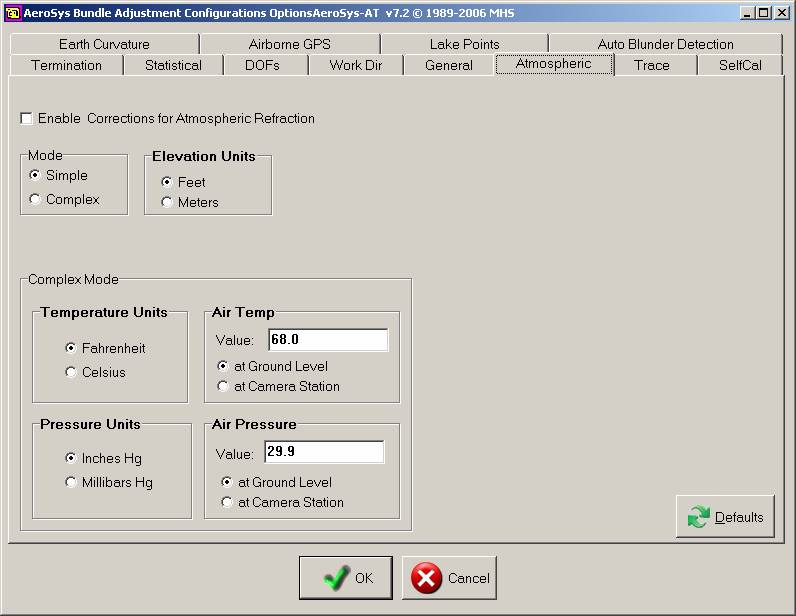

AeroSysSettings_image031



AeroSysSettings_image033



AeroSysSettings_image035



AeroSysSettings_image037



AeroSysSettings_image039



AeroSysSettings_image041



AeroSysSettings_image043



AeroSysSettings_image045

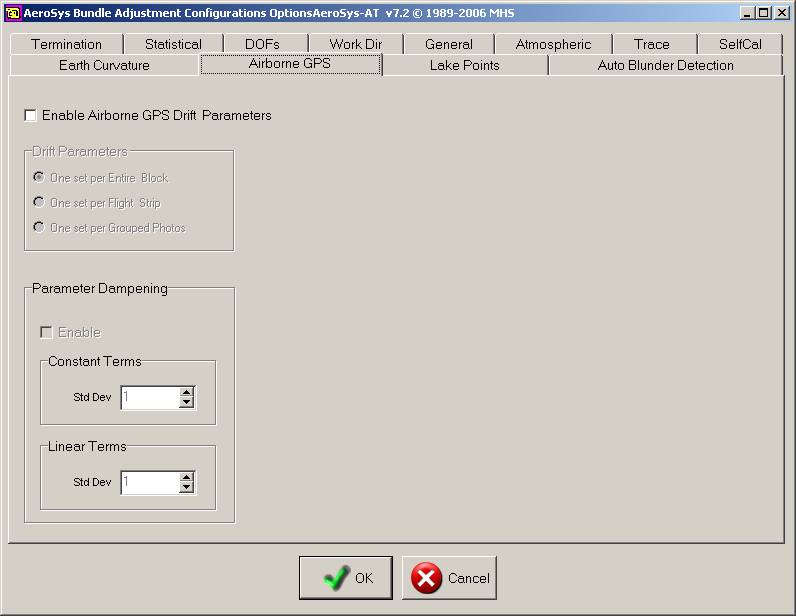

AeroSysSettings_image047



AeroSysSettings_image049

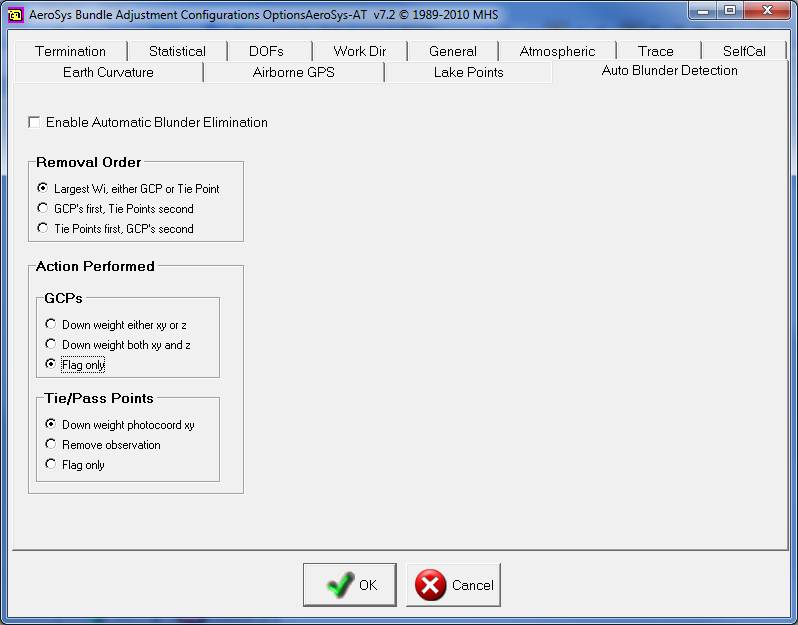

AeroSysSettings_image054
